Key Takeaways

Filter bypass leakage undermines rated filtration efficiency more than most buyers realize, and sealing quality often matters more than the MERV number on the box.

Point	Details
Gap size drives risk	A 10 mm gap can produce 25 to 35% bypass flow, while a 1 mm gap stays under 5%.
ΔP rises with age	Dust loading increases pressure drop, which pushes more air toward gaps over a filter’s service life.
Particle counting detects leaks fast	Upstream/downstream particle-count tests are highly sensitive for sampling cassettes and small housings.
Sealing beats upgrading	High-efficiency media suffers more from small gaps, so fixing seals often outperforms buying a higher-rated filter.
Test on a schedule	Verify seals after install, after each filter change, and quarterly in high-risk settings.

How Gap Size and Pressure Drop Drive Bypass Flow

Total airflow through a filter housing splits into two paths: air through the filter media (QF) and air through gaps around it (QB), so Q = QF + QB. The media path behaves predictably, resistance rises with velocity in a fairly linear way. The gap path behaves like flow through a crack or orifice, where flow rate scales roughly with the square root of pressure drop (ΔP). That distinction matters because it means bypass doesn’t grow proportionally with ΔP. It accelerates as ΔP climbs.

Gap width (H) is the other lever. Modeling work on common HVAC filters found that a 1 mm gap typically produces bypass flow under 5 percent, while a 10 mm gap can drive QB to 25 to 35 percent, enough to erase a full MERV rating point or more on a high-efficiency filter.

Gap Size (H)	Typical Bypass Flow (QB)	Effect on Effective Efficiency
~1 mm	Under 5%	Minimal, often within test variance
~3 to 5 mm	Moderate, rising with ΔP	Noticeable drop in MERVeff
~10 mm	25 to 35%	Severe, can drop one or more MERV tiers

Dust loading complicates this over a filter’s service life. As media clogs, ΔP rises, and rising ΔP pushes more air toward the path of least resistance, the gap. A filter that sealed well on day one can develop meaningful bypass by month three simply because its own resistance increased. This is why MERV filter ratings printed on the box describe the media alone, not the installed system.

What’s the Best Way to Detect Filter Bypass?

Detection methods split into four practical categories, each suited to different equipment and budgets.

1. Particle-count testing. Measuring particle number concentration upstream and downstream of the filter is the most sensitive method for catching bypass in sampling cassettes and small housings. It flags leaks well before they show up in mass-based measurements.
2. Pressure-differential and flow sensing. A manometer or differential pressure sensor across the filter bank tracks ΔP trends over time. Rising ΔP alone signals filter loading, not necessarily bypass, so this method works best paired with a particle-count spot check to separate the two.
3. Optical and photometric leak mapping. Technicians scan the filter face and frame perimeter with a photometer while injecting a challenge aerosol upstream, pinpointing the exact leak location rather than just confirming one exists.
4. Tracer gas methods. For sealed AHUs or ductwork where visual and photometric access is limited, a tracer gas released upstream and sampled at suspect joints can localize leaks that other methods miss.

For sampling cassettes and portable purifiers, particle counting is usually sufficient. For large air handling units, combine pressure trend logs with periodic photometric scans.

Why Filters Develop Bypass Leaks Over Time

Most bypass problems trace back to one of four root causes, and field technicians can usually narrow it down fast:

• Installation faults. A misaligned frame, a missing or pinched gasket, or insufficient clamping pressure leaves a physical gap on day one.
• Design tolerance issues. Oversized filter slots or loose manufacturing tolerances mean even a correctly installed filter can’t achieve a tight seal, and housings without dedicated perimeter seals make this worse.
• Operational aging. As discussed above, rising ΔP from dust loading reshapes airflow toward gaps that were negligible when the filter was new.
• Downstream duct leakage. Leaky ductwork after the filter bank can mimic bypass symptoms in air quality readings even when the filter itself seals perfectly, which is why isolating the test point matters.

Standards guidance on internal leakage in air handling units recommends checking frame and seal design specifically because installation and design faults compound each other in the field.

How to Seal and Prevent Filter Bypass Leakage

Sealing bypass starts with material choice. Compressible foam gaskets handle minor frame irregularities well and cost little. EPDM rubber holds up better under repeated filter changes and temperature swings. Integrated perimeter seals, built into the filter frame itself, outperform both for high-efficiency applications where even small gaps matter.

1. Verify seating on install. Confirm the filter sits flush against the frame with no visible light gaps, and apply consistent clamping pressure rather than guessing.
2. Check compression. Experimental work establishing assembly compression pressures for sampling cassettes showed that proper compression, not just gasket presence, determines whether a seal actually holds under airflow.
3. Add design-level barriers. Introducing bends or labyrinth paths along the perimeter reduces penetration of larger particles even when some bypass flow persists, a useful fallback when a perfect seal isn’t achievable.
4. Specify low-leak frames on new installations rather than retrofitting seals onto housings with poor tolerances.
5. Test on a schedule. Run particle-count or pressure checks immediately after installation, after every filter change, and quarterly in high-risk sites like clinical spaces.

Filter Selection Trade-offs When Bypass Risk Is High

High-efficiency media carries higher intrinsic ΔP, and that higher resistance makes it disproportionately sensitive to even small perimeter gaps. A HEPA-grade or MERV 15 filter loses more effective performance from a 3 mm gap than a MERV 8 filter would, because the pressure differential across that gap is larger to begin with.

A useful rule of thumb: if you can measure or estimate your gap width, treat anything under 2 mm as low risk, 2 to 5 mm as worth sealing soon, and anything approaching 10 mm as an active problem, since that range corresponds to the 25 to 35 percent bypass flow seen in modeling work.

• Upgrading to premium HEPA media without fixing seals wastes the investment.
• Sealing costs far less than a filter upgrade and often delivers a bigger real-world efficiency gain.
• Clinical settings and cleanrooms should treat any measurable bypass as a compliance issue, not a maintenance footnote.

For most households and offices, the fix is proportional: better sealing beats blind upgrades to filter grade.

How Airpurifiers.com Evaluates Filter Sealing and Fit

When Airpurifiers evaluates a purifier’s filter housing, the checks focus on fit and seal integrity as much as the media rating printed on the box. A filter that scores well on paper but seats loosely in its housing won’t deliver its rated performance in your living room.

A simple field checklist works for most home units:

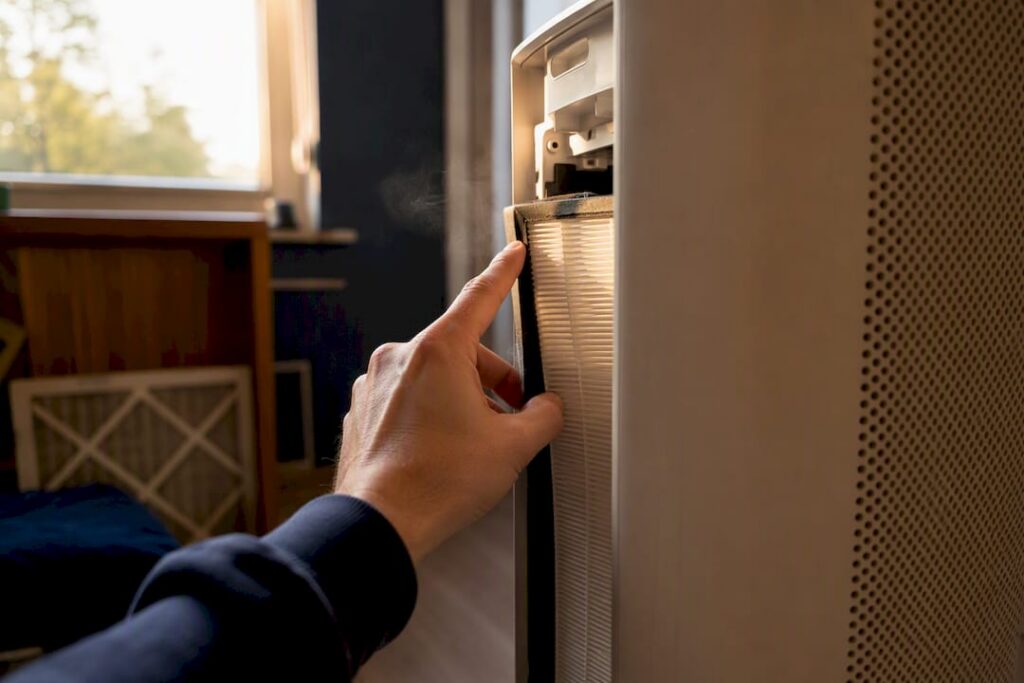

• Look for visible light or gaps around the filter edge when held up to a lamp
• Press gently on the filter frame to confirm even compression, not one loose corner
• Run a quick before/after comparison using an inexpensive particle counter near the outlet

For deeper background on filter types and how ratings translate to real air quality, see our guide to understanding air purifier filters and our filter cleaning walkthrough.

Check	What It Tells You
Visual light test	Reveals obvious frame or gasket gaps
Compression check	Confirms even seating pressure
Particle-count spot test	Quantifies actual bypass, not just visual fit

Get Reliable Filtration With a Purifier Built for a Tight Seal

Bypass problems are often baked into cheap housings before you ever install a filter. If you’re shopping for a unit where seal quality was actually part of the design, the Austin Air Pet Machine uses a robust filter housing built to minimize the perimeter gaps that cause bypass in lower-cost units. Pair that kind of hardware with the detection habits above, and you close the loop between rated efficiency and delivered performance. Browse expert air purifier reviews if you’re comparing options for a health-sensitive room or high-traffic space.

What the Research Actually Tells You to Prioritize

Most advice on filter performance still centers on the filter itself: buy a higher MERV rating, buy HEPA, replace it on schedule. The modeling and experimental work behind this article says something less comfortable. The housing and seal matter as much as the media, and in some cases more, because a high-efficiency filter with a mediocre seal can underperform a cheaper filter installed correctly.

The conventional advice skips the fact that bypass is dynamic, not fixed. A filter that seals fine on installation day can drift into meaningful leakage months later purely from rising pressure drop as dust accumulates. Nobody catches that with a one-time inspection.

If you take one thing from this, prioritize verification over specification. Buy a reasonable filter, then spend the time confirming it actually seats and seals under real airflow, and repeat that check periodically rather than assuming day-one performance holds steady. That habit closes more of the gap between rated and real efficiency than chasing the next MERV tier ever will.

Sources

• Investigation of Filter Bypass Leakage and a Test for Aerosol Sampling Cassettes (Baron et al., 2002)
• Modeling filter bypass and its impact on effective filtration (technical modeling report)
• REHVA technical note: internal leakage in air handling units and filter sealing guidance

FAQ

What Is a Filter Bypass?

A filter bypass is any pathway that lets air travel around the filter media instead of through it, usually through a gap at the frame, gasket, or housing seam. It means the filter’s rated efficiency doesn’t reflect what’s actually reaching the outlet air.

What Are the Symptoms of an Oil Filter Bypass Valve Failure?

In engine oil systems, a failed bypass valve typically shows up as unfiltered oil circulating under high pressure or cold-start conditions, sometimes flagged by accelerated engine wear or metallic debris in later oil samples. This mechanism mirrors air filtration bypass in principle: a pressure-driven path opens around the filter media whenever resistance gets too high.

Does a Whole-House Filter Need a Bypass?

Some whole-house filtration systems include a designed bypass valve to protect against excessive pressure drop when the filter loads heavily, which is different from unintended bypass leakage through a poor seal. A designed bypass is a safety feature; a leaking gasket or misaligned frame is a performance flaw.

Do I Need the Oil Filter Bypass Valve?

Yes, for automotive oil systems the bypass valve is a standard safety feature that keeps oil circulating to the engine if the filter becomes clogged, protecting against lubrication starvation. It’s a different system from air filtration bypass leakage, but both involve a designed or unintended path around filter media under pressure.
