Key Takeaways

Impregnated activated carbon extends standard physisorption with reactive chemical sites that target specific gases, but those sites are consumable and must be matched precisely to the target contaminant.

Point	Details
Match impregnant to target gas	Using the wrong impregnant against the wrong gas family is ineffective and potentially dangerous.
Require breakthrough curves	Demand contaminant-specific curves at your actual humidity, temperature, and inlet concentration before specifying.
Plan for disposal	Spent media loaded with regulated chemicals may be hazardous waste; get a written disposal plan from the vendor before purchase.
Prefer chrome-free formulations	Modern chrome-free media (e.g., URC 12×30) avoids the disposal and safety complications of older chromium-based impregnants.
Pilot mixed or humid streams	For high-humidity or mixed-gas applications, run a pilot test before full-scale installation to validate vendor capacity predictions.

How impregnated carbon filters work: physisorption vs. chemisorption

Standard activated carbon captures gases through physisorption: molecules diffuse into the pore network and adhere to the enormous internal surface area through van der Waals forces. One gram of activated carbon can exceed 3,000 m² of internal surface area, which explains its high capacity for organic vapors and chlorine. The bond is physical and, for many compounds, reversible.

Impregnated media adds a second mechanism. Chemical agents deposited on the carbon surface react directly with target molecules, forming stable compounds or catalyzing their oxidation. That is chemisorption, and the distinction matters practically: the reaction is often irreversible, the bond is stronger, and the media can capture gases that would otherwise pass through a plain carbon bed because they adsorb too weakly or too briefly to be retained.

The catch is that the impregnant itself is a consumable. Practitioners must treat the chemical impregnant as the active, consumable site: when those reactive sites are exhausted, the media stops removing the target gas even if physical adsorption capacity remains. A bed that still looks and feels like fresh carbon can be chemically spent. Breakthrough monitoring is therefore more critical with impregnated media than with plain GAC.

Humidity and temperature both affect chemisorptive performance. Many impregnants require a minimum relative humidity to activate, while excessive moisture can dilute or displace the reagent. High temperatures accelerate reaction kinetics but can also desorb weakly held compounds or degrade certain impregnants. Competing gases in a mixed stream can consume reactive sites faster than the target contaminant alone would, shortening bed life unpredictably.

Common impregnants and media formats mapped to target contaminants

Impregnant types by target gas family

The impregnant chemistry must match the target contaminant. Using the wrong one is not just ineffective; it can be dangerous. Selecting the wrong impregnant for the target gas can be ineffective or dangerous, so always verify chemical compatibility with vendor technical datasheets before specifying.

• Base-impregnated (KOH, NaOH, K₂CO₃): Targets acid gases including HCl, SO₂, H₂S, and NOₓ. Reacts with acidic molecules at the impregnant site.
• Acid-impregnated (H₃PO₄, citric acid): Targets alkaline gases: ammonia, trimethylamine, and other amines. Common in wastewater treatment and food processing.
• Sulfur-impregnated: Targets mercury vapor through formation of stable mercury sulfide. Used in chlor-alkali plants, natural gas processing, and laboratory venting.
• Iodine-impregnated: Targets mercury and provides antimicrobial activity. Also used in radioactive iodine capture in nuclear applications.
• Silver-impregnated: Bacteriostatic applications, particularly in drinking water systems where microbial growth in the bed is a concern.
• Potassium iodide (KI) or potassium permanganate (KMnO₄): Targets ethylene oxide and certain aldehydes through oxidative reactions.
• Multi-gas formulations (chrome-free): Products like Calgon Carbon’s URC 12×30 provide broad-spectrum protection across acid gases, bases, and organics without chromium, reducing disposal and worker-safety complications tied to older heavy-metal impregnants.

Media base materials and physical formats

The base carbon and physical format determine pressure drop, contact time, and installation constraints.

• Granular activated carbon (GAC): Most common format. Mesh sizes typically 4×8, 6×12, or 12×30. Finer mesh increases surface contact but raises pressure drop.
• Extruded/pelletized carbon: Cylindrical pellets (typically 1.5–4 mm diameter) offer lower pressure drop and more uniform packing than GAC. Preferred for high-flow industrial beds.
• Cloth/coated substrates: Activated carbon fiber cloth or coated media for thin-bed applications, HVAC molecular filtration panels, and respirator cartridges where low pressure drop is critical.
• Canister/cartridge grades: Fine-mesh impregnated GAC packed into sealed cartridges for respirators and point-of-use devices. NIOSH-certified cartridges must meet specific challenge-gas performance criteria.

Particle size and shape affect more than pressure drop. Smaller particles shorten the mass-transfer zone, which tightens the breakthrough curve and can extend usable bed life at a given bed depth, but the tradeoff is higher energy cost from increased resistance.

Activated carbon’s surface area exceeding 3,000 m² per gram gives the base material its high physisorption capacity, but the impregnant chemistry is what determines whether a specific inorganic gas is captured at all.

Where impregnated carbon is the right choice: industrial applications

The core application categories where an impregnated activated carbon filter is the correct specification rather than a plain carbon bed:

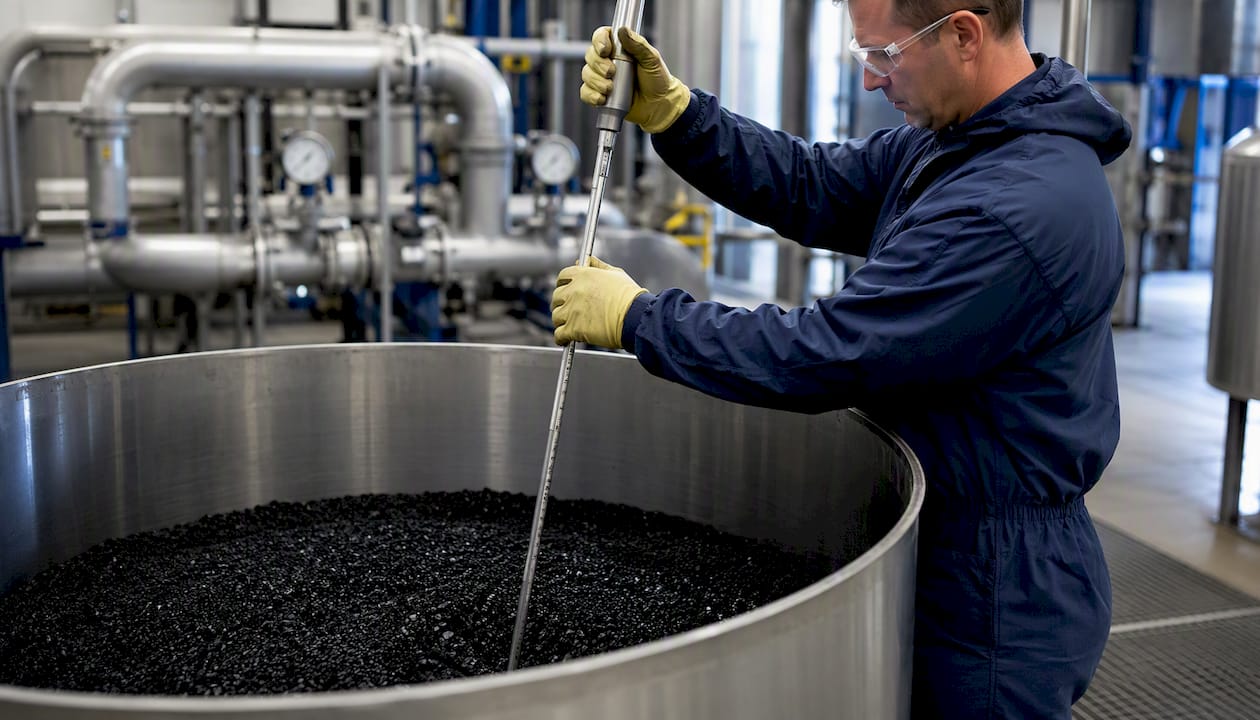

Biogas H₂S and siloxane removal. Anaerobic digestion produces hydrogen sulfide concentrations that can damage engines and corrode downstream equipment. Base-impregnated or catalytic carbon beds are placed upstream of biogas generators to protect them. Siloxane removal typically requires a separate or combined media stage.

Mercury vapor capture. Chlor-alkali plants, fluorescent lamp recycling, natural gas processing, and certain laboratory venting streams all generate mercury vapor. Sulfur- or iodine-impregnated pellets convert mercury to stable solid compounds within the bed. This is one of the clearest cases where plain GAC simply fails: mercury’s vapor pressure and weak physisorption affinity mean it breaks through an unimpregnated bed quickly.

Ethylene oxide (EO) sterilizer outlet control. Hospital and industrial sterilizers vent EO, a carcinogen regulated under EPA NESHAP 40 CFR Part 63. Impregnated carbon beds at the sterilizer exhaust are a standard control technology. Bed sizing must account for EO concentration spikes during the exhaust cycle.

Food and beverage odor control. Acid-impregnated media captures ammonia and amine off-gassing from fermentation, rendering, and protein processing. The low odor thresholds for these compounds mean even modest breakthrough is a compliance or neighbor-complaint issue.

Industrial odor control and molecular filtration. Wastewater treatment plants, chemical manufacturing vents, and pulp and paper facilities use impregnated carbon beds in vapor-phase molecular filtration systems to meet air permit limits. Camfil’s molecular filter media catalog covers acid, base, ethylene oxide, and mercury-targeted formulations for exactly these applications.

Respirator cartridges. NIOSH-certified combination cartridges for acid gas, organic vapor, and mercury protection all use impregnated GAC or cloth. The impregnant type determines the cartridge’s service life against specific gases, and NIOSH test protocols verify performance before certification.

On the point-of-entry versus point-of-use question: whole-stream treatment (POE) makes sense when the contaminant is present throughout the process or building air supply. Local capture (POU) is appropriate when the source is a specific piece of equipment or a single vent point. System selection depends on contaminant volatility and exposure pathways, and getting that decision wrong means either over-engineering or under-protecting.

Performance metrics and design parameters you must specify

Engineers specifying impregnated carbon beds need quantitative data from vendors, not qualitative claims. The metrics to require:

1. Contaminant-specific capacity (mg/g or wt%): How much of the target gas the media holds per unit weight under defined conditions. This is the primary sizing input.
2. Breakthrough curve at operating conditions: A plot of outlet concentration versus throughput volume or time at your inlet concentration, flow rate, humidity, and temperature. Not a generic lab curve.
3. Recommended bed depth and empty bed contact time (EBCT): EBCT = bed volume / volumetric flow rate. Typical values range from 0.5 to 3 seconds for vapor-phase applications, but the correct value depends on the contaminant and inlet loading.
4. Pressure drop vs. flow rate: Critical for fan/blower sizing and for confirming the media format is compatible with your system.
5. Recommended humidity and temperature range: Operating outside these bounds degrades chemisorptive performance, sometimes sharply.
6. Expected replacement interval: Derived from capacity and loading, with a conservative safety factor for variable inlet concentrations.

Reading a breakthrough curve for impregnated media requires more care than for plain GAC. The curve often shows a sharp front: the media performs near-perfectly until the impregnant sites are consumed, then outlet concentration rises steeply. Plain GAC breakthrough tends to be more gradual. That sharp front means you have less warning time before the bed fails, which argues for conservative design margins and continuous or periodic outlet monitoring.

The EBCT equation is conceptually straightforward: a longer contact time gives molecules more opportunity to reach and react with impregnant sites. Doubling bed depth at the same flow rate doubles EBCT and generally extends bed life, but increases capital cost and pressure drop. Peer-reviewed adsorption studies provide the kinetics and capacity data most useful for engineering design, and for atypical or mixed-gas streams, lab-scale isotherms or pilot tests are worth the investment before committing to full-scale installation.

How to choose the right impregnated carbon: a procurement checklist

Start with the target contaminant. Every other specification follows from that. A multi-purpose or generic carbon is only acceptable if the vendor can provide contaminant-specific breakthrough data confirming it performs for your gas at your conditions.

Pre-purchase checklist:

• Confirmed target gas list with inlet concentrations (ppm or mg/m³) and flow rate
• Required bed life or replacement interval (driven by maintenance schedule and cost)
• Allowable pressure drop across the bed
• Operating humidity and temperature range (minimum, maximum, typical)
• Phase confirmation: vapor-phase or liquid-phase application
• Space constraints: available bed depth and footprint
• Regeneration vs. replace preference (most impregnated media is replace-only)
• Disposal requirements and local hazardous-waste rules for spent media

Vendor questions to ask before ordering:

• Can you provide ISO 10121-series test reports for this media against my target gas?
• What is the breakthrough curve at my inlet concentration, flow, humidity, and temperature?
• What is the manufacture date and impregnation method?
• Is this formulation chrome-free? Can you confirm in writing?
• What is the recommended disposal pathway for spent media loaded with my target contaminant?
• What MSDS/SDS documentation is available for both fresh and spent media?

Red flags that should stop a purchase:

A vendor who cannot provide contaminant-specific breakthrough data is guessing at performance. “Proprietary impregnant” with no safety data is a disposal liability waiting to happen. No disposal guidance for spent media loaded with a regulated chemical is a compliance problem, not just an inconvenience.

Testing standards and third-party verification for impregnated carbon

Require vendor data that references recognized test standards. Marketing language like “high efficiency” or “superior performance” is not a specification.

• ISO 10121 series: The primary international standard for testing gas-phase molecular filtration media. ISO 10121-1 covers test methods for specific gas families. Request test reports referencing this series for any media going into an industrial molecular filtration application.
• ASTM D3803: Standard test method for nuclear-grade activated carbon. Relevant for iodine-impregnated media in nuclear or radiological applications.
• ASTM D6646 / D6860: Methods for adsorption capacity and related properties of activated carbon. Useful for comparing base-material quality across vendors.
• NIOSH 42 CFR Part 84: Governs approval testing for respirator cartridges and canisters in the U.S. Any impregnated carbon cartridge used for worker respiratory protection must carry NIOSH approval for the specific gas class.
• NSF/ANSI 42 and 53: For water-treatment applications, NSF certification or equivalent third-party verification confirms that the media meets performance and materials safety standards.

Third-party lab verification matters most for high-risk streams: mercury, EO, and acid gases at concentrations near regulatory limits. On-site pilot testing, running a small bed at actual process conditions for several weeks, is the most reliable way to validate vendor breakthrough predictions before committing to a full installation. Extension services and state health departments emphasize that activated carbon is not a one-stop fix; for streams containing metals, nitrates, or microbial contaminants, plan multi-stage systems and confirm exposure pathways.

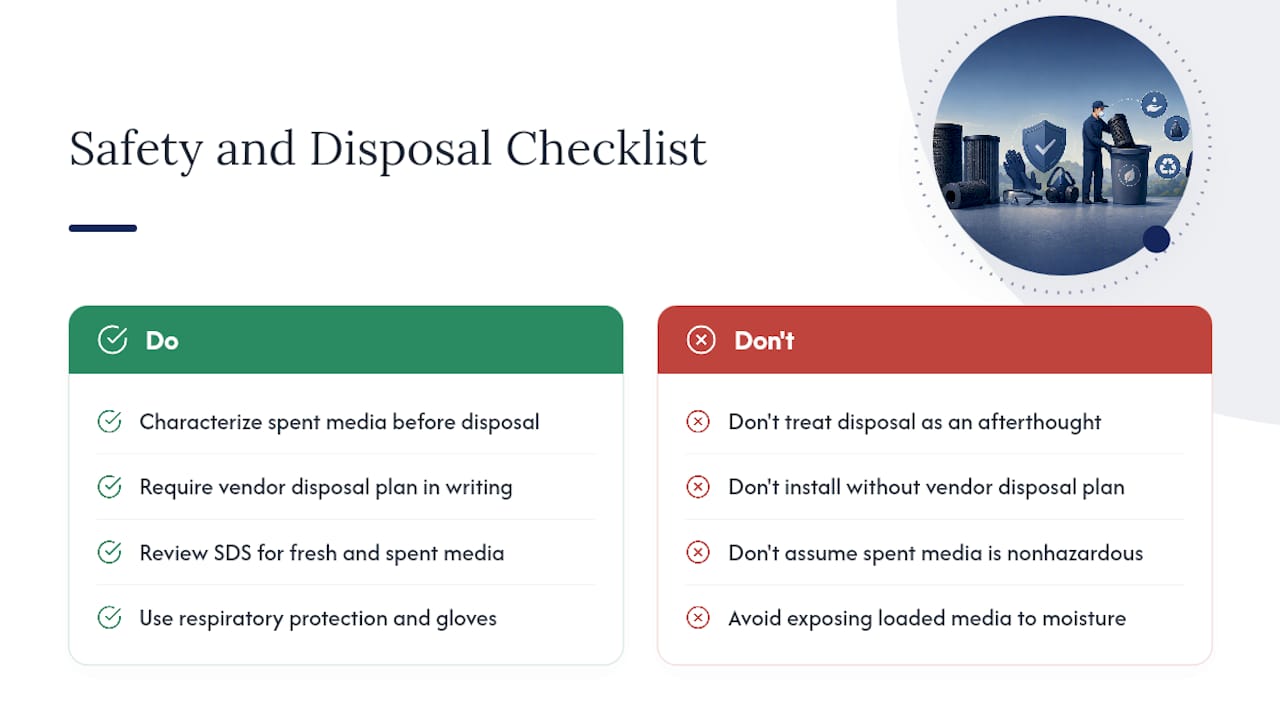

Safety, disposal, and the shift to chrome-free formulations

Some older impregnated carbon formulations used chromium-based compounds, which created serious disposal and worker-safety problems. Spent media loaded with hexavalent chromium is a listed hazardous waste under EPA rules, requiring characterization, manifesting, and disposal at a permitted facility. Modern, chrome-free formulations like Calgon Carbon’s URC 12×30 provide multi-gas protection without chromium, and most major suppliers now offer chrome-free alternatives across their product lines.

Handling and PPE during change-out: Review the SDS for both fresh and spent media. Fresh impregnated carbon can release fine dust containing the impregnant; respiratory protection and gloves are standard. Spent media loaded with captured contaminants may require additional PPE depending on what was adsorbed. Some loaded media can undergo exothermic reactions if exposed to moisture or incompatible chemicals during removal.

Carbon filtration has documented limitations with metals, inorganics, and microbial contaminants, and peer-reviewed literature on carbon materials and health/environmental impacts reinforces that no single medium handles every contaminant class. Multi-stage systems combining impregnated carbon with HEPA, scrubbers, or other technologies are common in practice.

U.S.-available suppliers: what each one offers

This is a starting-point discovery list. Every vendor here still requires contaminant-specific breakthrough validation and chrome-free confirmation for your application.

• Camfil: Specializes in molecular filtration media for HVAC and industrial air treatment. Their impregnated activated carbon line covers acid gases, bases, ethylene oxide, and mercury-targeted formulations, with ISO 10121 testing referenced for molecular media. Strong choice for building-level molecular filtration and cleanroom applications.
• General Carbon: Broad catalog of impregnated GAC for industrial vapor-phase applications. Their technical guide on impregnated activated carbon is one of the more accessible practitioner references available and covers impregnant types, mechanisms, and selection guidance. Ask for contaminant-specific capacity data and breakthrough curves.
• RecoFil: Supplies impregnated carbon media primarily for molecular filtration panels and industrial air treatment systems. Useful for engineered filter assemblies where media format and bed geometry are specified by the system integrator. Confirm chrome-free status and request ISO 10121 test sheets.
• Calgon Carbon (Chemviron): One of the largest activated carbon suppliers in North America. Their URC 12×30 is a chrome-free, multi-gas impregnated GAC developed for respirator and industrial applications. Calgon also supplies mercury-targeted and specialty impregnated pellets for process industries. Request product bulletins and ask specifically about disposal characterization data for spent media in your application.

The part of impregnated carbon selection that most buyers get wrong

The conventional procurement approach treats impregnated carbon as a commodity: pick a supplier, order the media, install it, and replace it on a calendar schedule. That works fine for plain GAC in a low-stakes odor application. For impregnated media targeting mercury, ethylene oxide, or acid gases, it is a liability.

The real problem is that most specification errors happen before the media is ever ordered. Engineers reach for a multi-gas or “broad-spectrum” impregnated carbon because it sounds like it covers everything, without verifying that the vendor has breakthrough data for their specific gas at their specific conditions. The media gets installed, the bed appears to be working because there is no immediate visible failure, and then either a compliance exceedance or an equipment failure downstream reveals that the bed was never performing as assumed.

Chrome-free formulations deserve more attention than they typically get in procurement conversations. The shift away from chromium-based impregnants is not just an environmental preference; it directly affects disposal cost and regulatory exposure. A facility that installs chromium-impregnated media without a disposal plan in place is creating a future hazardous-waste problem. The chrome-free alternatives perform comparably for most applications, and the regulatory simplicity alone justifies the switch.

The other underweighted factor is humidity. Most vendor capacity data is generated at controlled lab conditions. Real industrial streams, biogas upgrading, wastewater venting, food processing exhaust, are often humid and variable. Pilot testing is not optional for those applications; it is the only way to know what you are actually buying.

For readers whose interest extends to consumer-grade carbon filtration, Airpurifiers covers HEPA versus carbon filter comparisons and how activated carbon works in air purifiers in detail, including which contaminant classes each technology addresses.

Sources

• A Guide To Impregnated Activated Carbon
• Drinking Water Treatment: Activated Carbon Filtration — University of Nebraska–Lincoln Extension
• PMC article — technical review (example)

FAQ

What is the difference between activated carbon and impregnated carbon?

Standard activated carbon captures gases through physical adsorption into its pore structure. Impregnated carbon adds chemical agents to the surface that react with specific target gases through chemisorption or catalytic oxidation, enabling capture of inorganic gases and heavy metals that plain carbon cannot reliably hold.

What are the main disadvantages of using an impregnated carbon filter?

The primary disadvantages are finite capacity until chemical sites are exhausted, inability to remove certain inorganics outside the impregnant’s target chemistry, and potentially hazardous disposal requirements when spent media is loaded with toxic industrial chemicals.

What is impregnated activated carbon?

Impregnated activated carbon is activated carbon treated with one or more chemical agents (such as KOH, sulfur, KI, or H₃PO₄) that add chemisorption or catalytic activity, allowing the media to target specific gases like ammonia, mercury vapor, acid gases, or ethylene oxide that standard carbon cannot capture effectively.

Is a pre-carbon filter necessary before an impregnated carbon bed?

Not always, but a pre-filter for particulates is standard practice in most industrial systems to prevent fouling of the impregnated bed and to protect pressure drop performance. For high-dust or high-aerosol streams, a particulate pre-filter extends impregnated media life significantly.

How do you know when an impregnated carbon bed needs replacement?

Impregnated media often shows a sharp breakthrough curve: outlet concentration stays near zero until the impregnant sites are consumed, then rises steeply. Continuous or periodic outlet monitoring with a calibrated detector is the most reliable method; calendar-based replacement alone is insufficient for critical applications.
